And here we go with part 2 of my DQ860MA reverse engineering project!

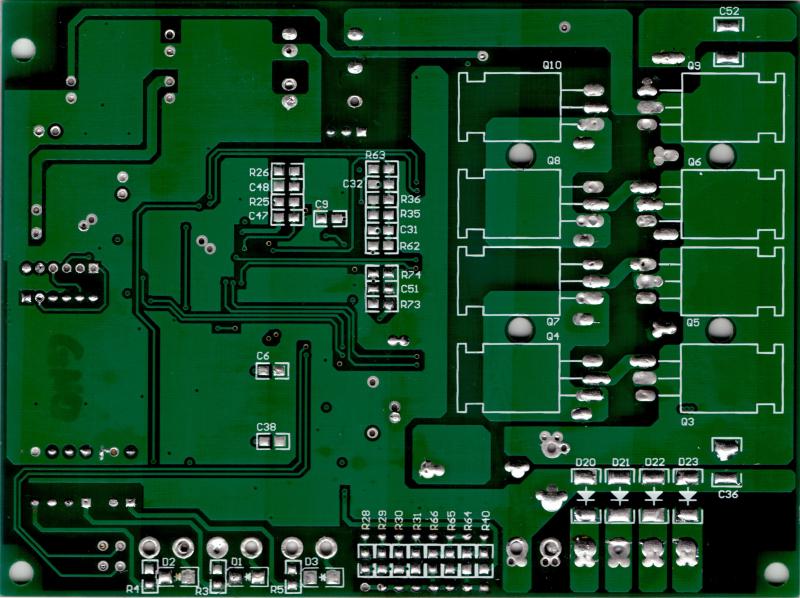

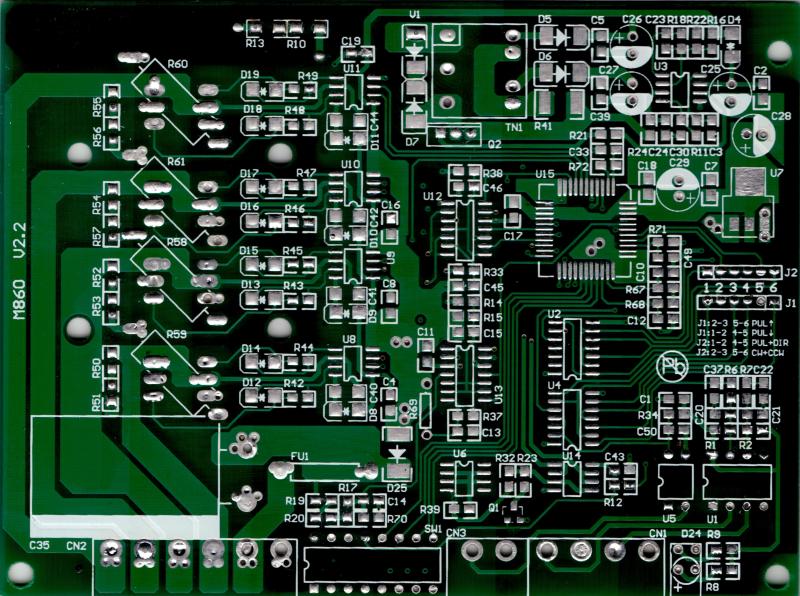

After i listed all parts, i desoldered them and cleaned the PCB very well. Then i scanned the PCB from both sides to get a clear image of all the traces.
In the next step i will remove to top and bottom layer to hopefully get a clear view on the inner layers.
