Attiny1616 and UPDI followup

In my last post Attiny1616, PlatformIO and UPDI I descriped how I use UPDI to programm an Attiny1616 using platformio .

Since then a few things happened and I thought its a good chance to write up my improvements.

UPDI circuit 🔗

I realized that it would come in handy if I could program my boards with no 24VDC supply connected to the borad, just the 5V from USB. So I put in a diode in order to supply the 5V from USB to the uC.

Writing fuses 🔗

I use Adafruit’s NeoPixel library which works great. But it has a check that prevents it from running above 19Mhz. The Attiny1616 runs at 20Mhz by default.

So I had a hard time figuring out how to set the correct fuse that switches the internal oscillator to 16Mhz. The fuse responsible is fuse2/osccfg which needs to be set to 0x01 in order to run the CPU at 16Mhz.

I finally figured out that avrdude is the only way that worked for me to write the fuse.

My platformio.ini now looks like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

[env]
platform = atmelmegaavr
board = ATtiny1616
framework = arduino
board_build.f_cpu = 16000000L
monitor_speed = 115200
lib_deps = hideakitai/Debouncer@^0.3.2
    adafruit/Adafruit NeoPixel@^1.12.4

[env:updi]
; t1616 = ATtiny1616
; fuse2 -> 0x01 = 16Mhz (0x02 = 20Mhz)
upload_command = avrdude -c serialupdi -p t1616 -P $UPLOAD_PORT -b $UPLOAD_SPEED -U fuse2:w:0x01:m -U flash:w:$SOURCE:i

A simple pio run -t upload sets the fuses and writes the firmware to the Attiny.

Power supply and outputs 🔗

In my last project I used some really nice ICs for the first time with wich I’m really happy.

Power supply 🔗

I almost always supply my boards with 24VDC, so I need a DC-DC converter that can handle this input voltage. Also I hate it when I need a ton of additional parts, such as inductors, capacitors and so on that need to be calculated in order to work properly. Ideally its a self contained module or IC. I know there are modules from Recom for example, but they are quite large and expensive.

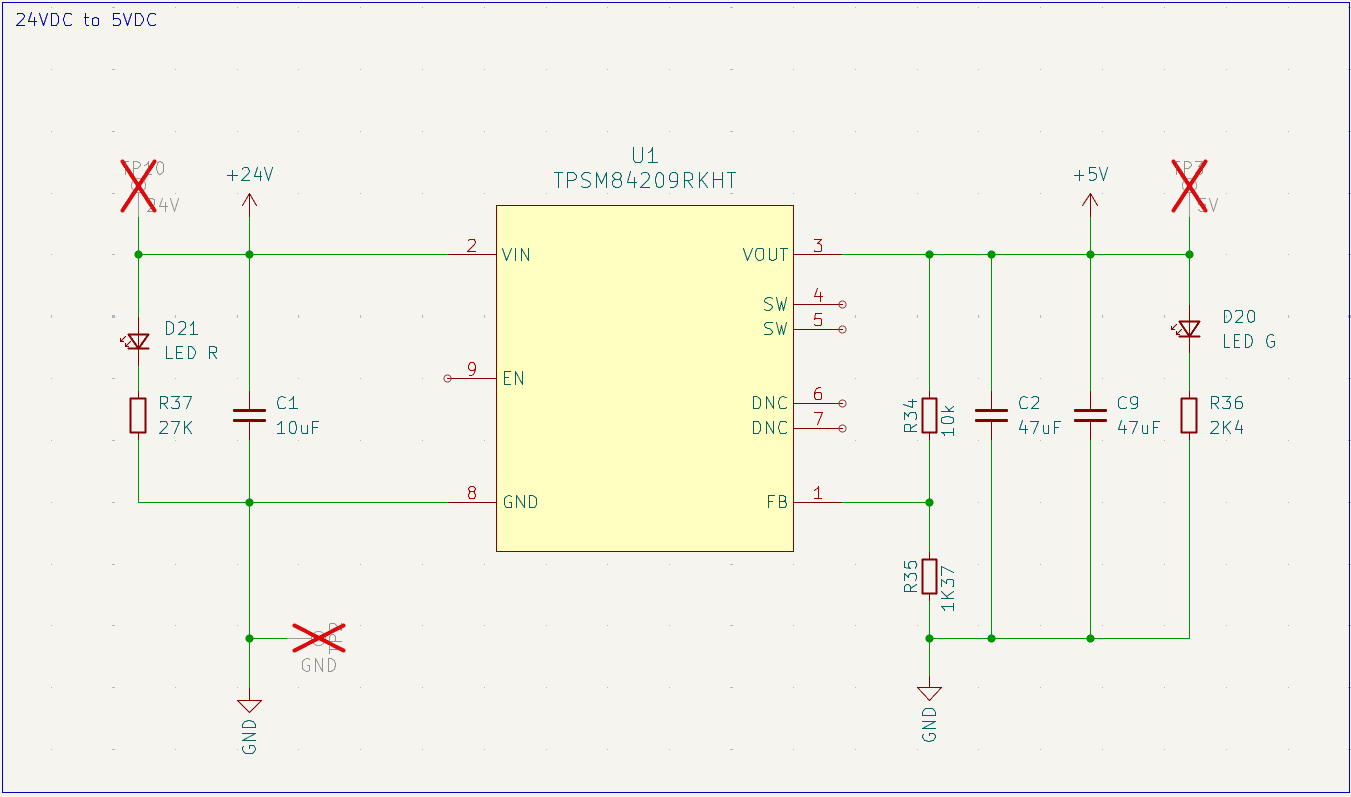

So on my search for something better, I stumbled up on the TI TPSM84209RKHT

Its a 4.5-V to 28-V input, 1.2-V to 6-V output, 2.5-A power module in a 4.5-mm × 4-mm × 2-mm QFN Package that needs only a few cpacitors and resistors as additional components.

combined with a polyfuse and a FET for reverse polarity protection, this is going to be my go to solution for the future!

And finally, JLCPCB has this part in stock for 4USD!

Outputs 🔗

In the past I often used FETs for driving higher loads, but this has its own disadvantages.

I found the TI TPS274160ARLHR which 4-channel high-side switch.

To be more precise its a 36-V, 160-mΩ, 1.35-A, 4-ch, Industrial high-side switch with adjustable current limit.

It comes in a QFN28 package and needs no additional components appart from 10k resistors in front of the enable inputs and a reistor for the current limit.

Its available at JLCPCB for just 2.5USD
